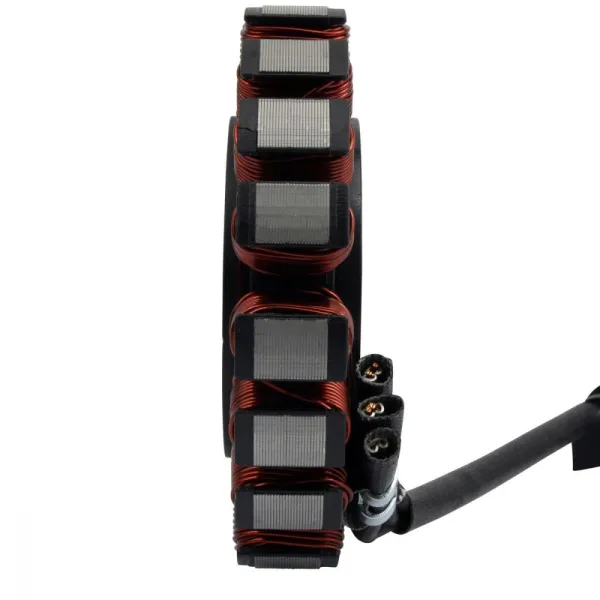

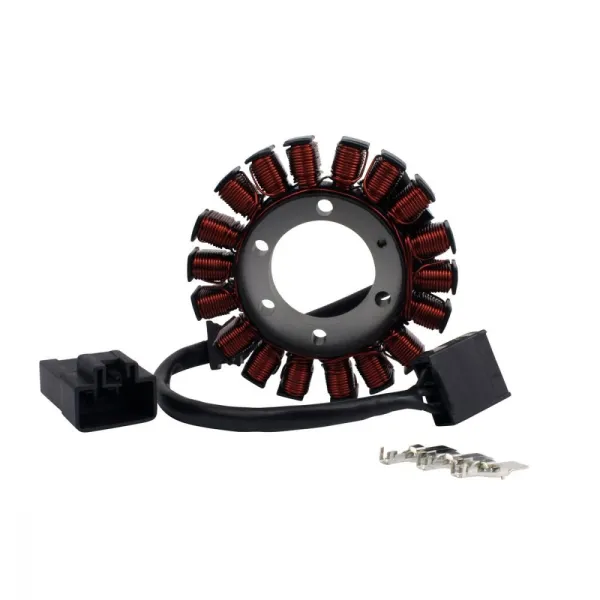

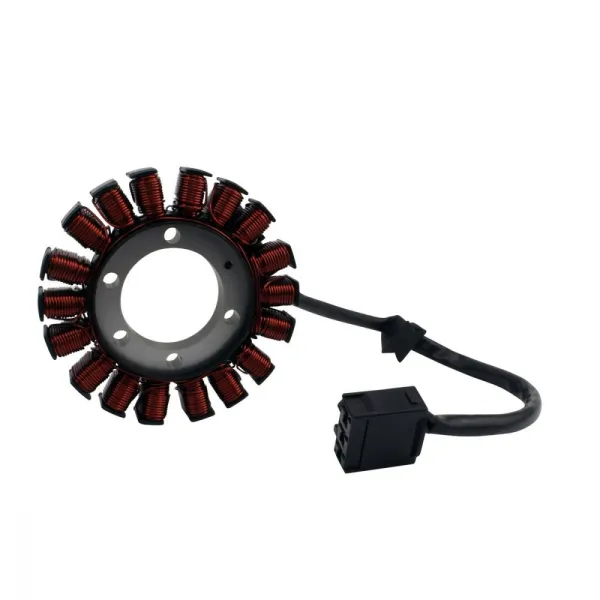

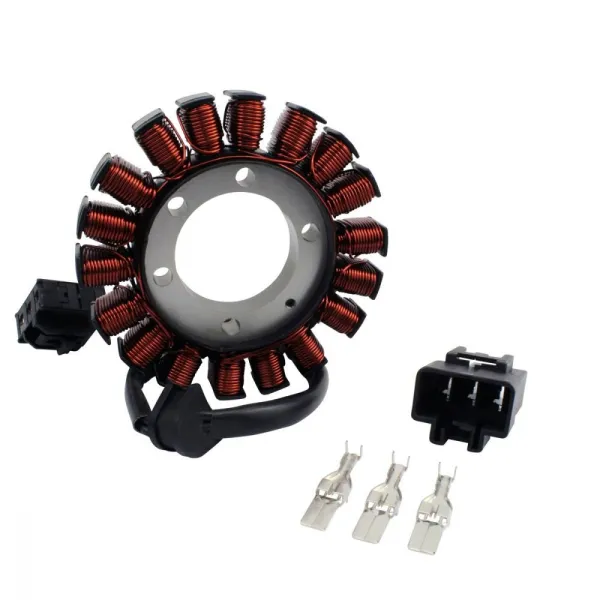

Stator Triumph Speed Triple 1050 R RS OEM T1300196

Stator

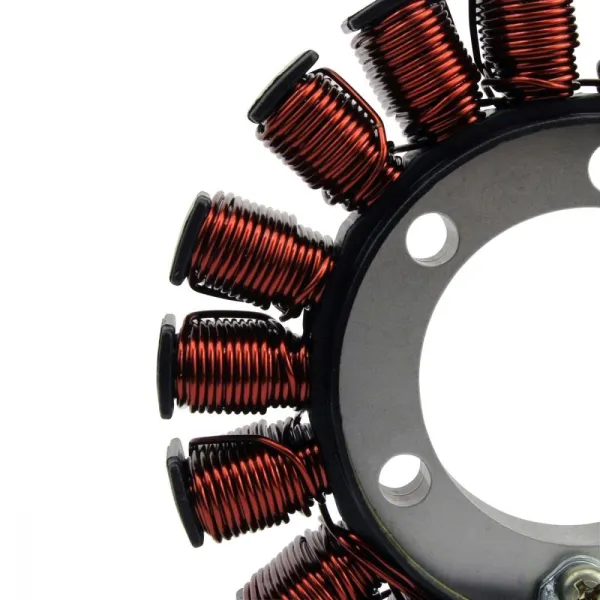

Highest grade copper windings, resistant to 200 degrees Celsius

2020 Triumph Speed Triple 1050 RS

2020 Triumph Speed Triple 1050 R

2019 Triumph Speed Triple 1050 RS

2019 Triumph Speed Triple 1050 R

2018 Triumph Speed Triple 1050 RS

2018 Triumph Speed Triple 1050 R

OEM T1300196

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 107 mm

Thickness: 12 mm

Length of wires stator to grommet: 110 mm

Length of wires grommet to plug: 200 mm

Other specifications:

Number of wires: 3

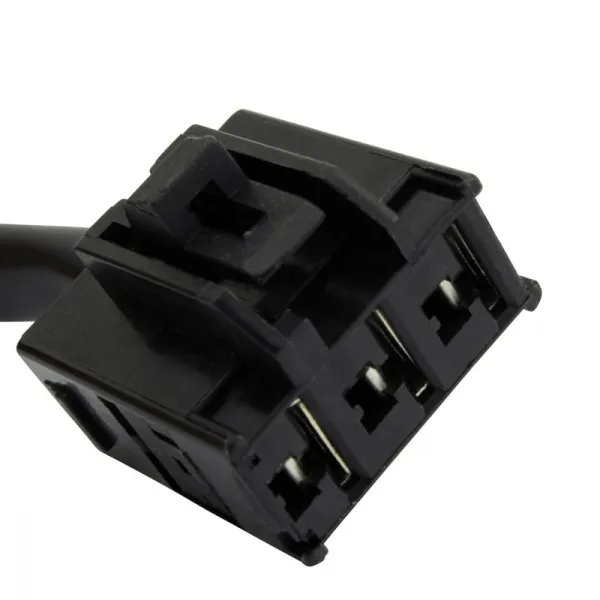

Number of plugs: 1

Number of pins: 3

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L
