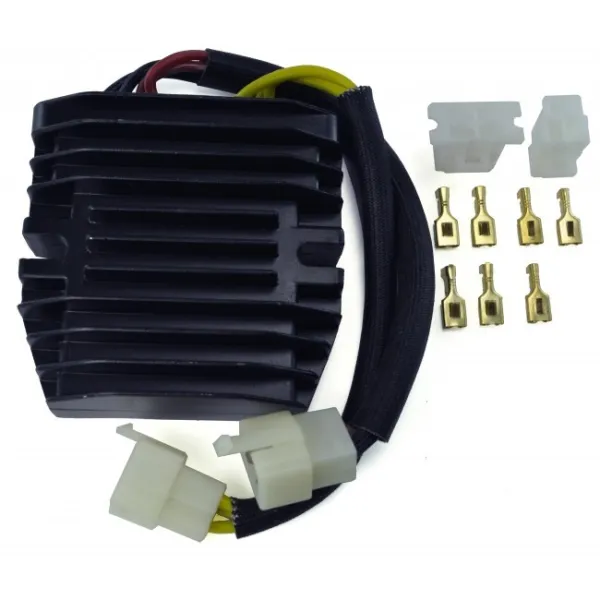

Regulator Rectifier-Mosfet-Triumph-Street Triple 675-Daytona 675

•  Regulator Rectifier Mosfet
• 2006-2017 Triumph Daytona 675
• 2010 Triumph Street Triple 675
  2009 Triumph Street Triple 675
  2008 Triumph Street Triple 675



Improved heat sink and charging capabilities

• It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Dimensions :
Width : 30 mm
Length : 94 mm
Height : 82 mm
Fixation holes center to center : 75 mm
Wires Length: 171 mm & 200 mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
