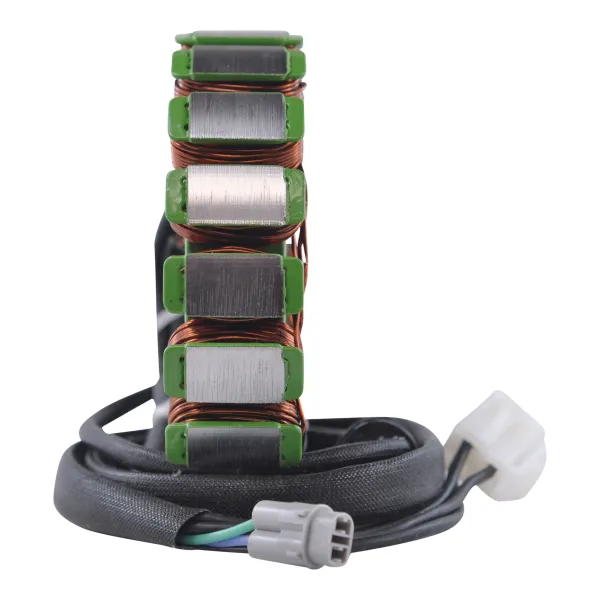

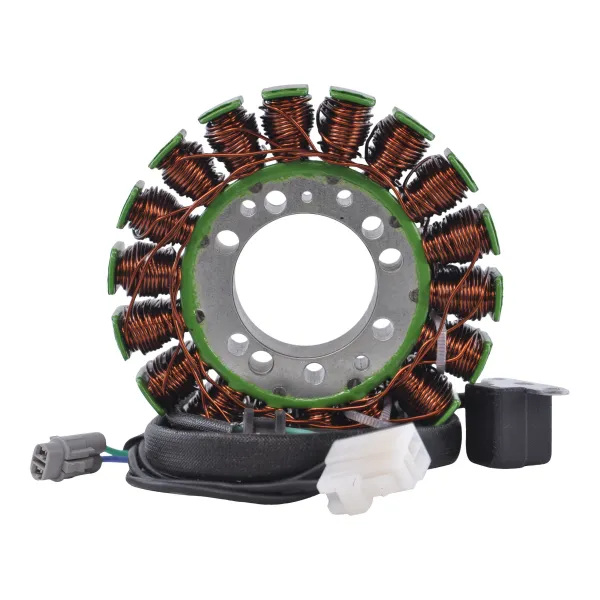

Stator-Triumph-Daytona 675

Stator

Resistant to 200 degrees Celsius

2020 Triumph Daytona 675
2019 Triumph Daytona 675
2018 Triumph Daytona 675
2017 Triumph Daytona 675
2016 Triumph Daytona 675
2015 Triumph Daytona 675
2014 Triumph Daytona 675
2013 Triumph Daytona 675
2012 Triumph Daytona 675 R
2012 Triumph Daytona 675
2011 Triumph Daytona 675 SE
2011 Triumph Daytona 675 R
2011 Triumph Daytona 675
2010 Triumph Daytona 675
2009 Triumph Daytona 675
2008 Triumph Daytona 675
2007 Triumph Daytona 675
2006 Triumph Daytona 675

Daytona 675 2006-2017
This stator replaces only OEM # T1300039, and was used on VIN #’s up to 564947. For vehicles with a HIGHER VIN, you must look for CARMS010-107393.

Exterior Diameter: 115mm
Interior Diameter: 42mm
Thickness: 21mm

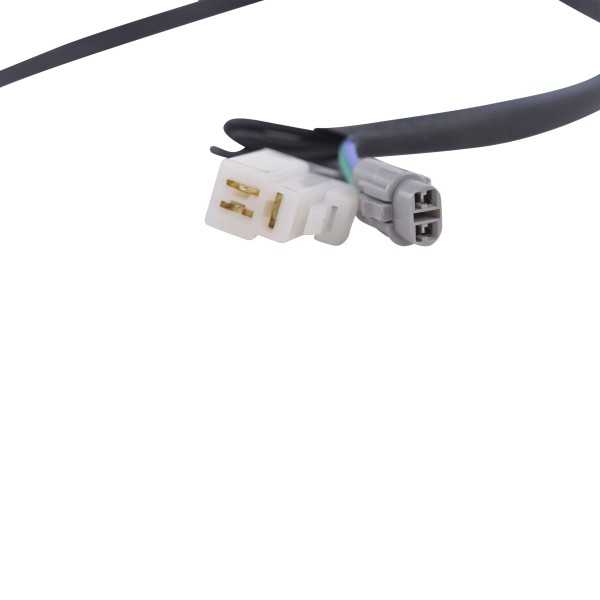

Harness length stator to grommet: 180 mm
Harness length grommet to plug: 140 mm
Pickup Coil`s length to grommet: 105 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: black between each black = 0.5 ohms +/-20%
Pickup: green to blue = 230 ohms =+/-20%

OEM T1300039
