It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

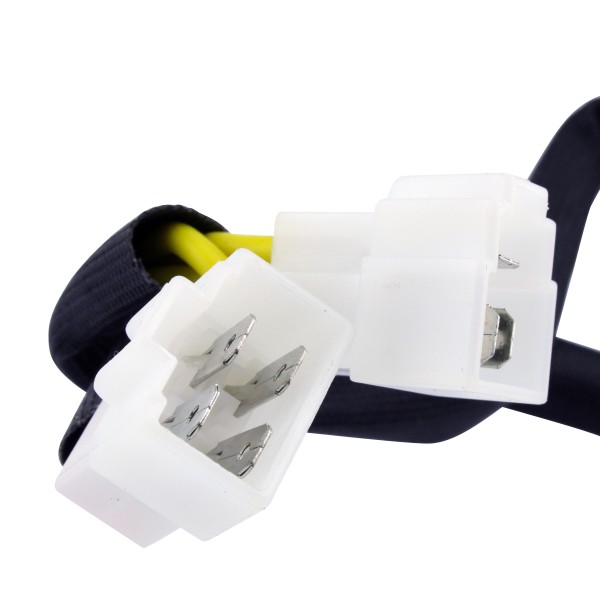

Dimensions: Width: 90 mm Length: 94 mm Height: 30 mm Fixation holes center to center: 79 mm Other specifications: Number of plugs: 2 Number of pins: 5 Number of wires: 0 Minimum Charging Voltage: 14.5 V +- 0.5 V Maximum Charging Current: 50 A / 500 W Open Circuit Voltage: 15 V Operation Temperature: -20⁰ to 85⁰

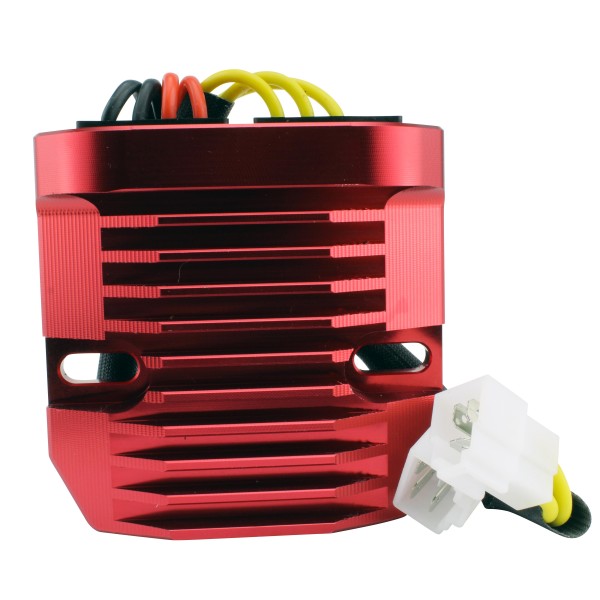

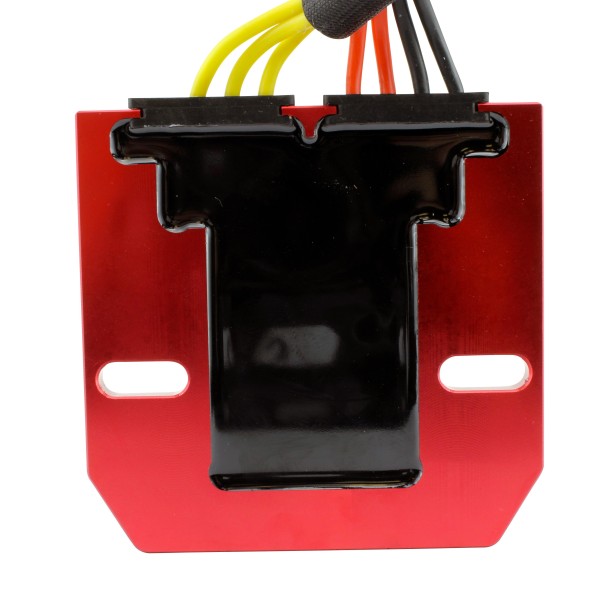

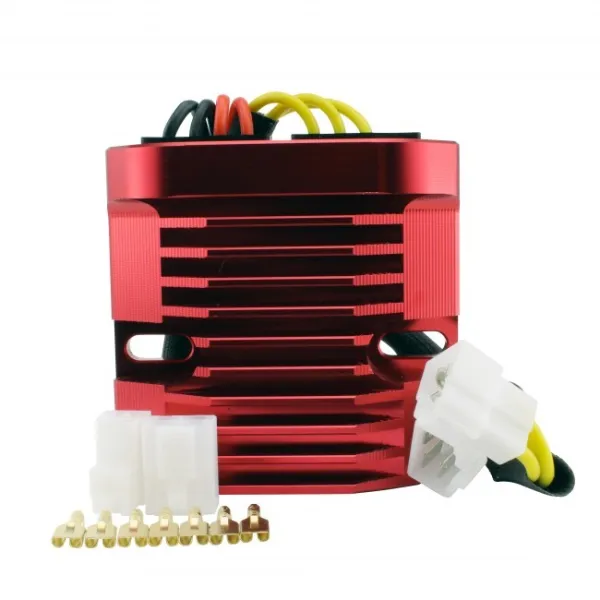

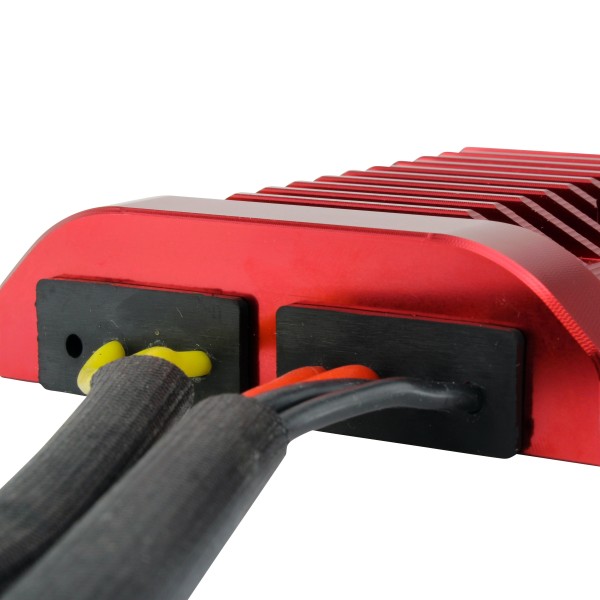

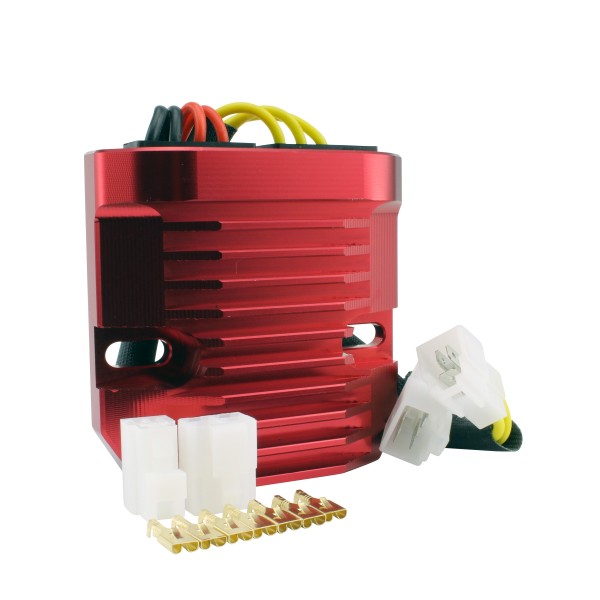

Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
