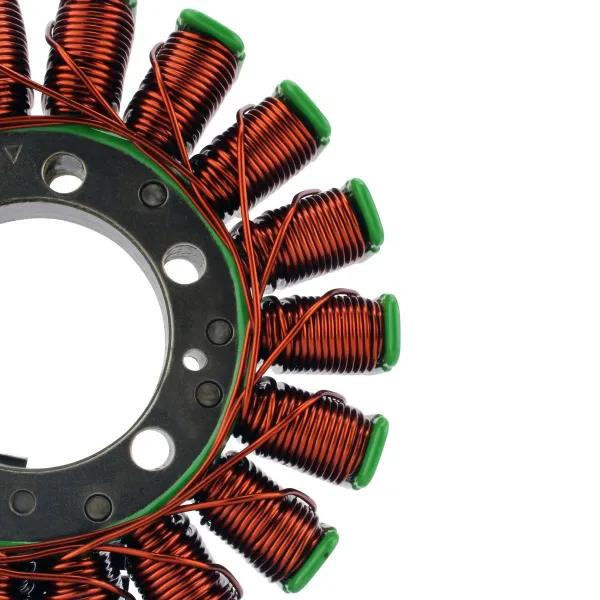

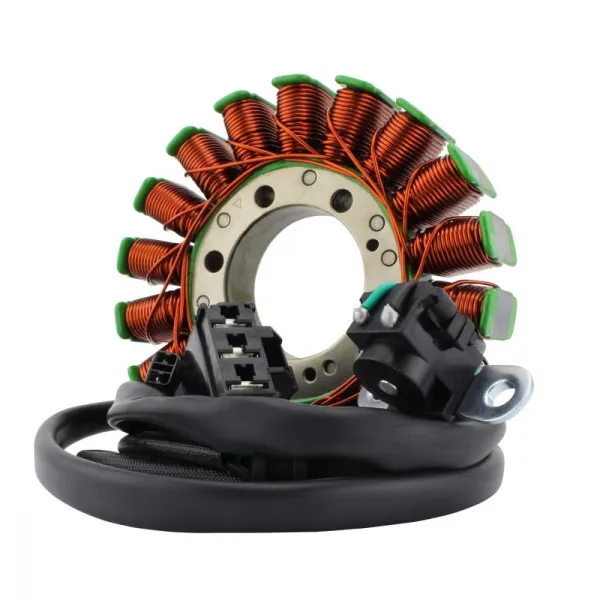

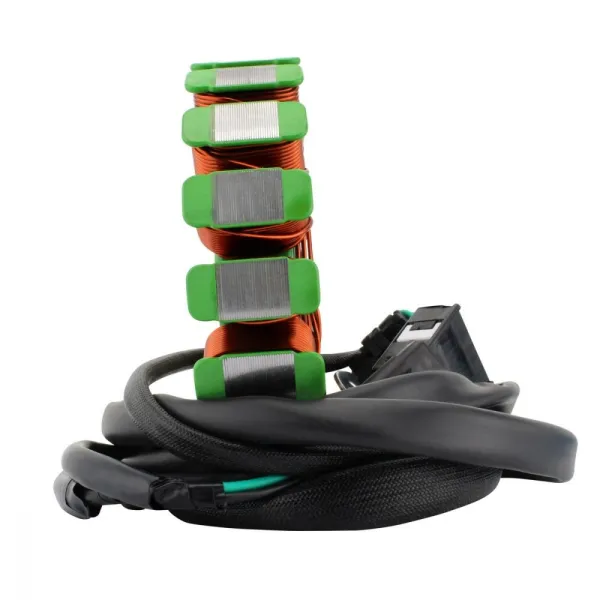

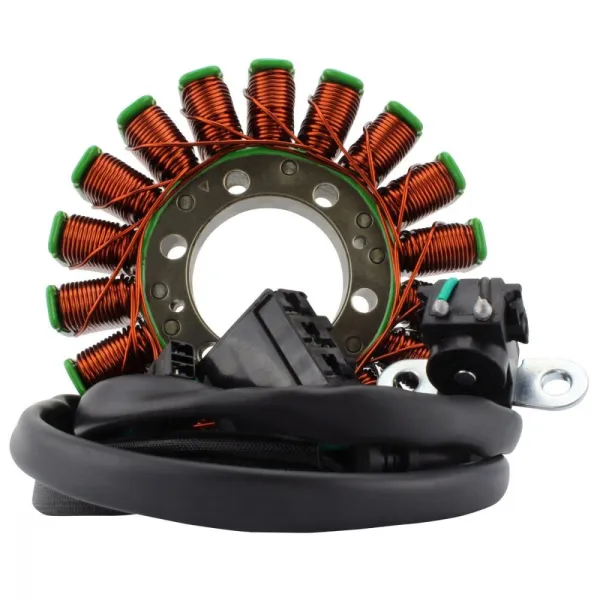

Stator Triumph Daytona 675R Daytona 675 OEM T1300181

2020 Triumph Daytona 675 R
2020 Triumph Daytona 675
2019 Triumph Daytona 675 R
2019 Triumph Daytona 675
2018 Triumph Daytona 675 R
2018 Triumph Daytona 675
2017 Triumph Daytona 675 R
2017 Triumph Daytona 675
2016 Triumph Daytona 675 R
2016 Triumph Daytona 675
2015 Triumph Daytona 675 R
2015 Triumph Daytona 675
2014 Triumph Daytona 675 R
2014 Triumph Daytona 675
2013 Triumph Daytona 675 R
2013 Triumph Daytona 675
2012 Triumph Daytona 675 R
2012 Triumph Daytona 675
2011 Triumph Daytona 675 R
2011 Triumph Daytona 675
2010 Triumph Daytona 675 R
2010 Triumph Daytona 675
2009 Triumph Daytona 675 R
2009 Triumph Daytona 675
2008 Triumph Daytona 675 R
2008 Triumph Daytona 675
2007 Triumph Daytona 675 R
2007 Triumph Daytona 675
2006 Triumph Daytona 675 R
2006 Triumph Daytona 675

OEM T1300181

This stator replaces only OEM # T1300181 and is used on vehicles with a VIN HIGHER than 564948. For vehicles with VIN up to 381274 or VIN 381275 to 564947, you must look for CARM01389.

Dimensions:
Interior diameter: 42mm
Exterior diameter: 115mm
Thickness: 18mm
Length of wires stator to grommet: 240mm
Length of wires grommet to plug: 190mm & 880mm
Length of pickup coil's wire to grommet: 270mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%
