REVOLT Regulator Polaris Sportsman X2 550 Sportsman 550 Touring Sportsman 850 XP Sportsman 550 XP OEM 4011636

2010 Polaris Sportsman X2 550
2010 Polaris Sportsman 550 Touring
2009 Polaris Sportsman 850 XP
2009 Polaris Sportsman 550 XP

OEM 4011636

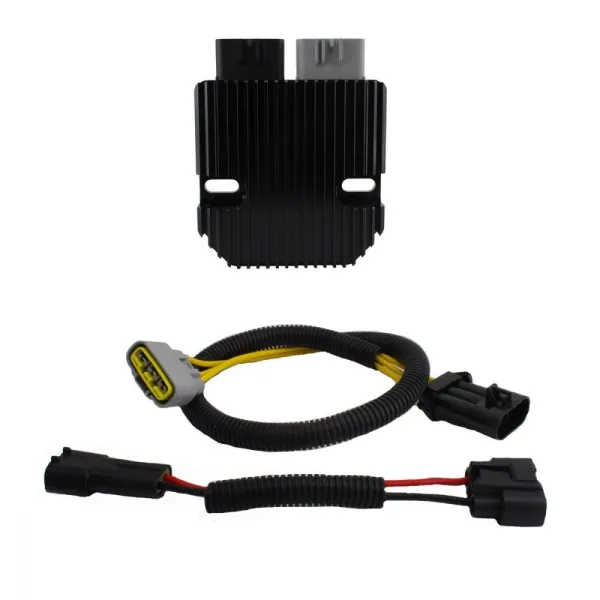

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm
Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
