Home>IGNITION ATV SSV UTV>YAMAHA ATV>700 Grizzly>Stator Yamaha 700 Grizzly 700 Kodiak OEM B16-H1410-00-00

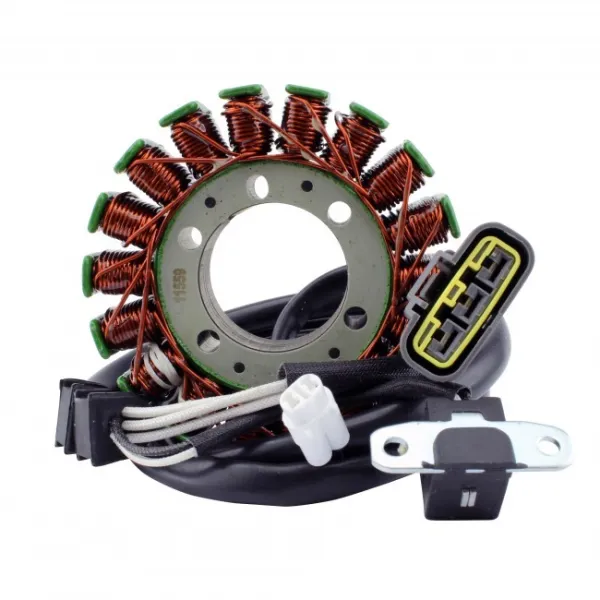

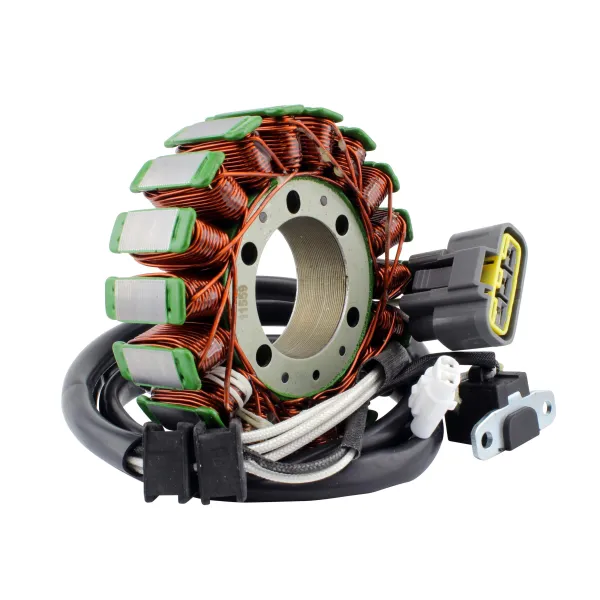

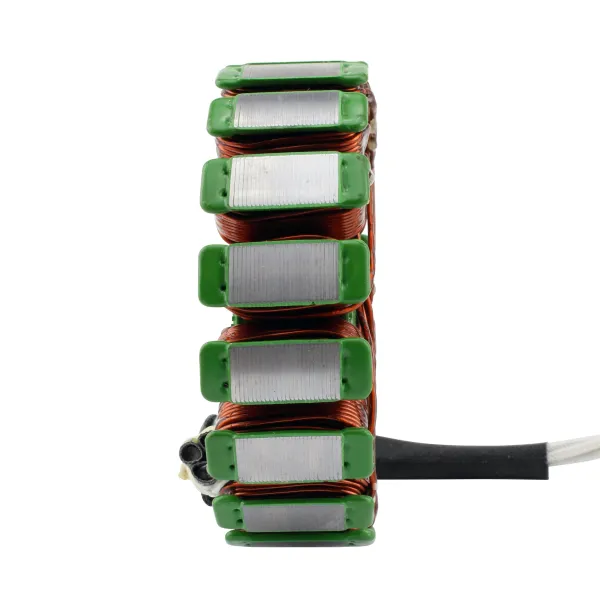

Stator Yamaha 700 Grizzly 700 Kodiak OEM B16-H1410-00-00

  • Stator Yamaha 700 Grizzly 700 Kodiak OEM B16-H1410-00-00

More details...

238,80 €

CARMS010-104902

Availability : 5-7 Days

4 items in stock

  • Stator - Highest grade copper windings, resistant to 200 degrees Celsius

  • 2018 Yamaha YFM 700 Grizzly
    2018 Yamaha YFM 700 Kodiak
    2017 Yamaha YFM 700 Grizzly
    2017 Yamaha YFM 700 Kodiak
    2016 Yamaha YFM 700 Grizzly
    2016 Yamaha YFM 700 Kodiak
    OEM B16-H1410-00-00
    Dimensions :
    Interior diameter : 42 mm
    Exterior diameter : 66 mm
    Thickness : 22 mm
    Length of wires stator to grommet : 130 mm
    Length of wires grommet to plug : 1096 mm
    Length of pickup coil's wire to grommet : 115 mm
    Other specifications :
    Number of wires : 5
    Number of plugs : 2
    Number of pins : 5
    Number of poles : 18
    Wire to wire resistance :
    Alternator : Between each white = 0.4 ohms +-20%
    Source : Black to White = 200 ohms +-20%
    Alternator to ground = O.L
