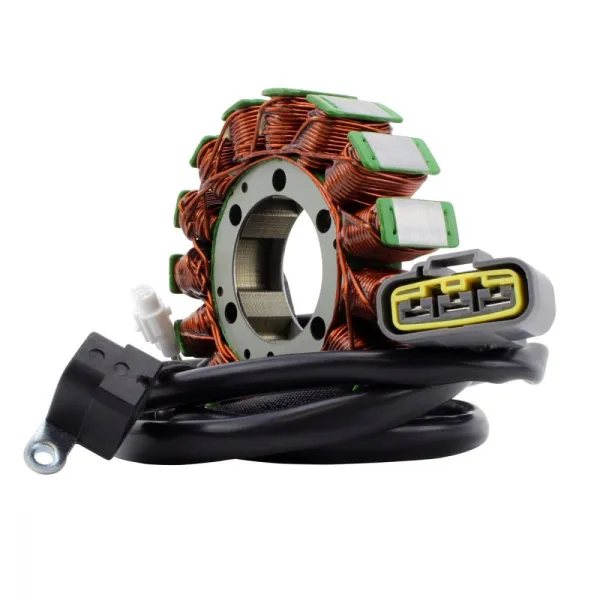

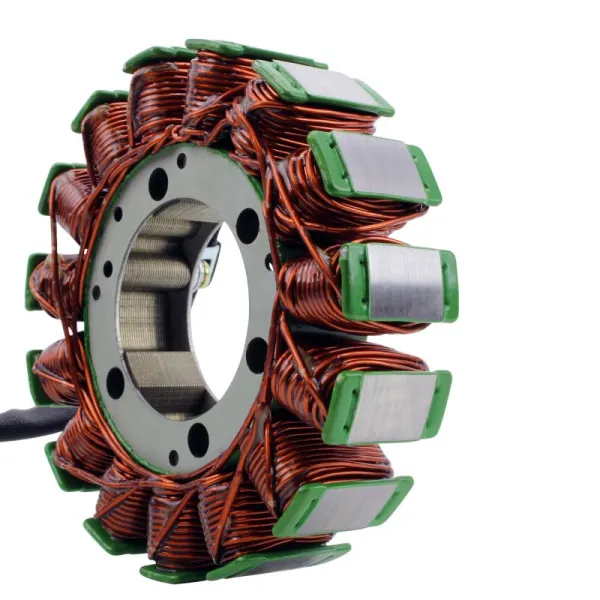

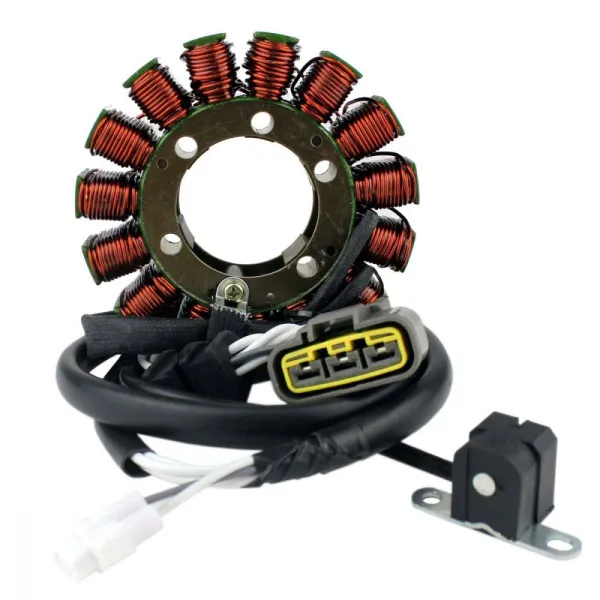

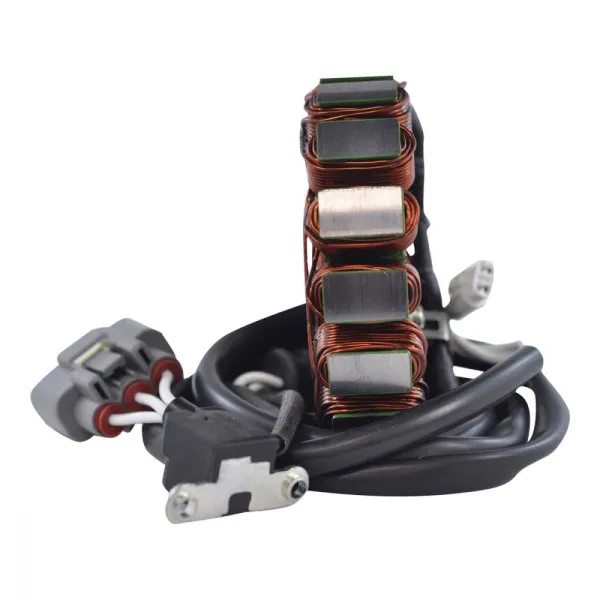

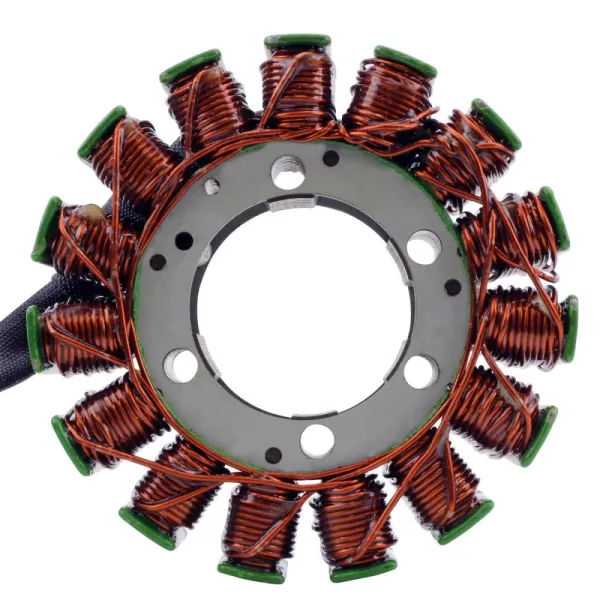

Stator Yamaha 700 Kodiak OEM 28P-81410-00-00 3B4-81410-00-00 28P-81410-01-00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

2019-2024 Yamaha YFM 700 Kodiak

OEM 28P-81410-00-00
3B4-81410-00-00
28P-81410-01-00

Dimensions :
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm, 1100 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500 ohms +/-20%
