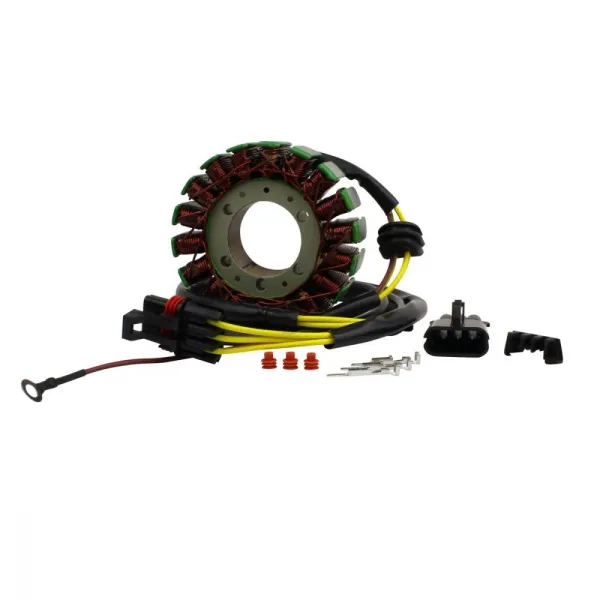

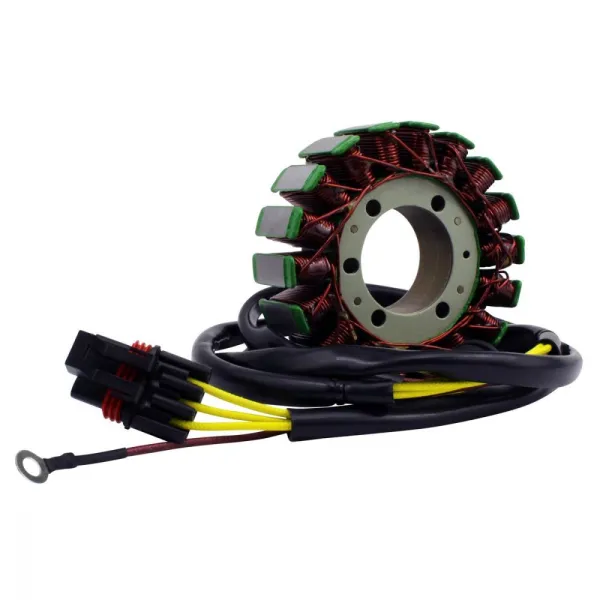

Stator Polaris Sportsman X2 800 Sportsman 800 EFI Sportsman 700 EFI OEM 4011609

2007 Polaris Sportsman X2 800

2007 Polaris Sportsman 800 EFI

2007 Polaris Sportsman 700 EFI

OEM 4011609

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 107 mm

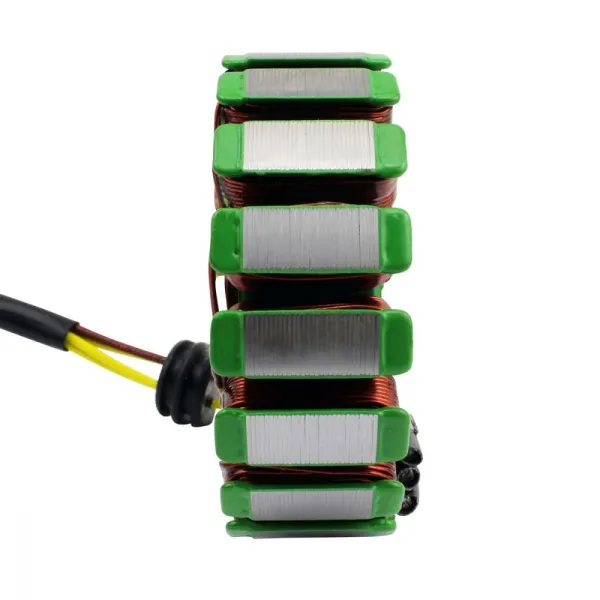

Thickness: 25 mm

Length of wires stator to grommet: 140 mm

Length of wires grommet to plug: 1000 mm & 1350 mm

Other specifications:

Number of wires: 4

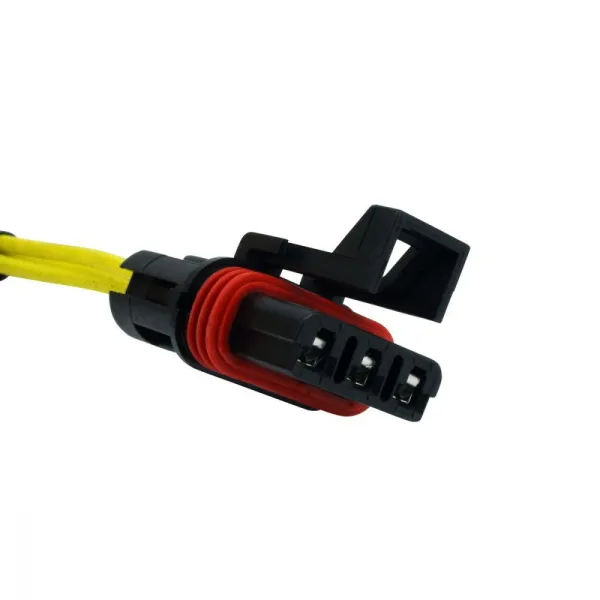

Number of plugs: 2

Number of pins: 4

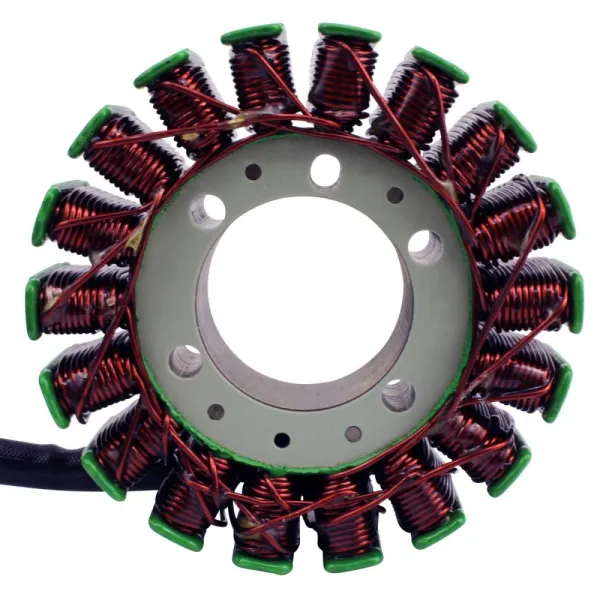

Number of poles: 18

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.3 ohms +/-20%

Alternator: Yellow to ground = O.L
