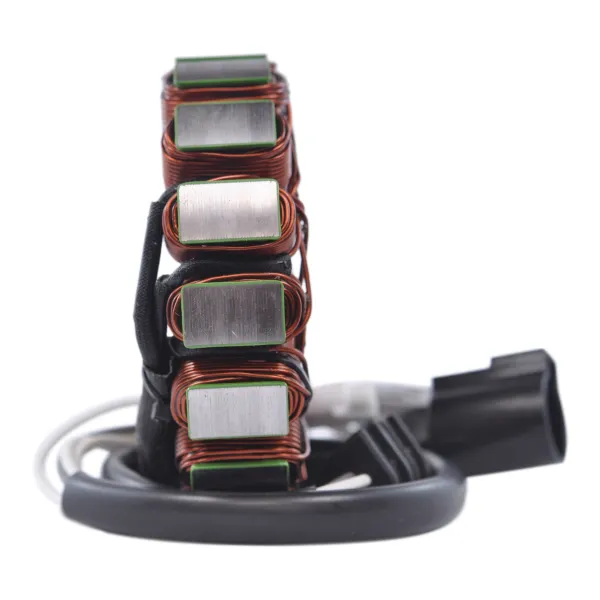

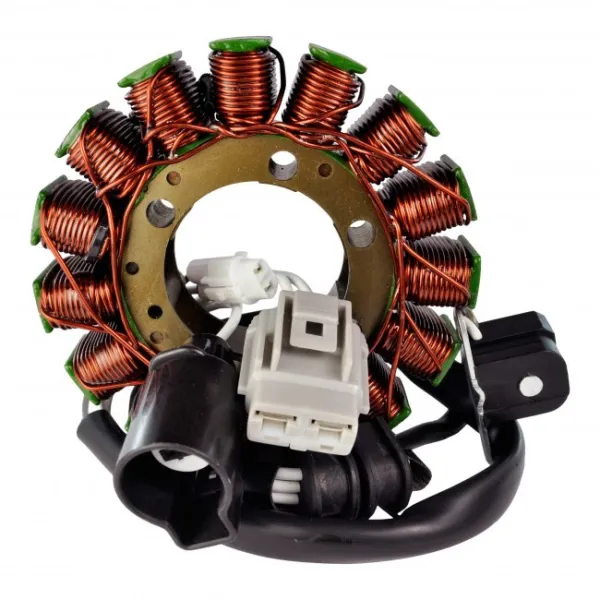

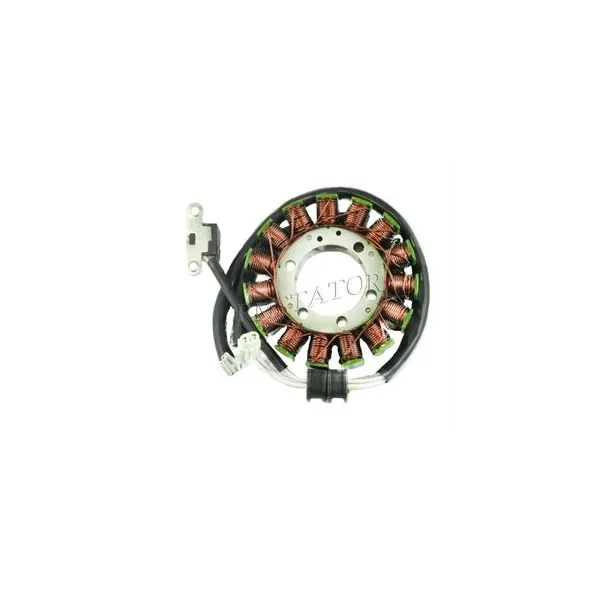

Stator-Yamaha-Viking 700

Stator

2014-2025 Yamaha YXM Viking 700

OEM 5B4-81410-00-00 / 1XD-81410-00-00

• Stator Pick-Up Pulsar Coil
• Highest grade copper windings, resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 41mm
Exterior diameter : 105mm
Thickness : 19mm
Length of wires stator to grommet : 65mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 65mm

Other specifications :
Number of wires : 5

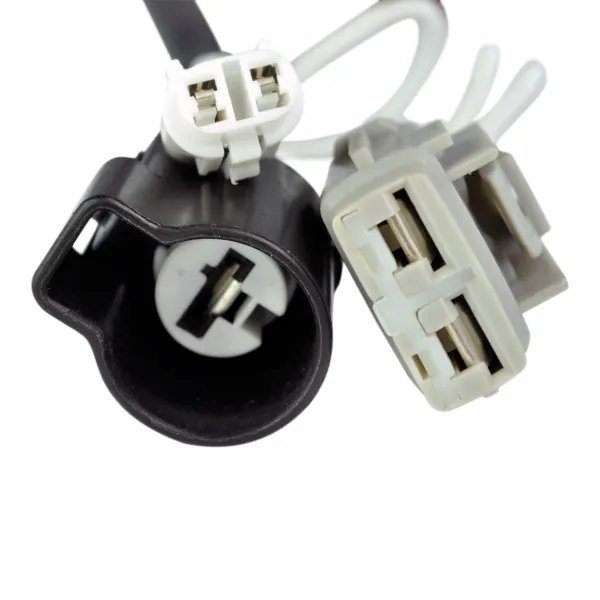

Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%
Pickup : White to Grey = 500ohms +/-20%
