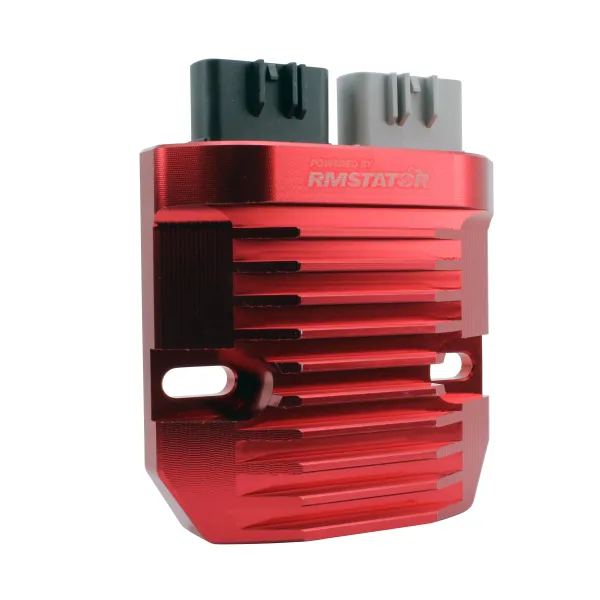

Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00

Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00

€162.00 Tax included

Aluminum Mosfet Regulator Yamaha 700 Viking OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00

Reference
CARMS022-105928
5-7 Days (5 Items)

  • Yamaha 700 Viking 2014-2017
    OEM 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
    • It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

      Improved heat sink and charging capabilities

      Before installing your new voltage regulator rectifier:
      Check the AC output of the stator.
      Replace any burned or corroded connectors on stator and regulator/rectifier
      Check and repair any melted wiring.
      Use hi-temp dielectric grease on all connectors.
    Dimensions:
    Width: 103 mm
    Length: 103 mm
    Height: 28 mm
    Fixation holes center to center: 80 mm
    Other specifications:
    Number of plugs: 2
    Number of pins: 5
    Number of wires: 0
    Minimum Charging Voltage: 14.5 V +- 0.5 V
    Maximum Charging Current: 50 A / 500 W
    Open Circuit Voltage: 15 V
    Operation Temperature: -20⁰ to 85⁰
    Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
