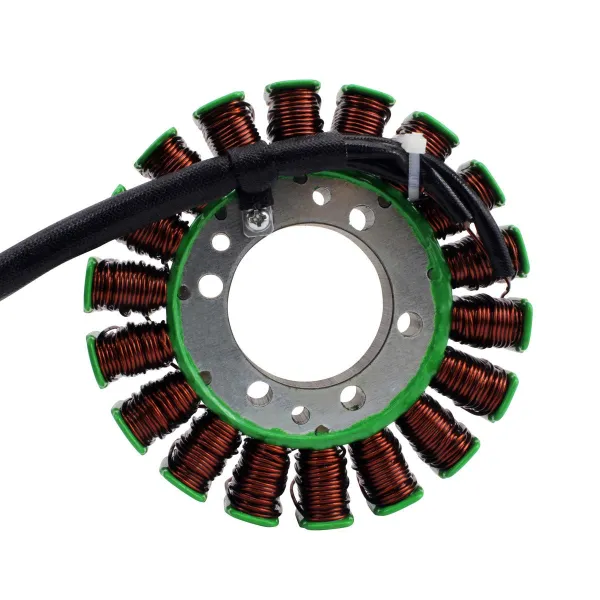

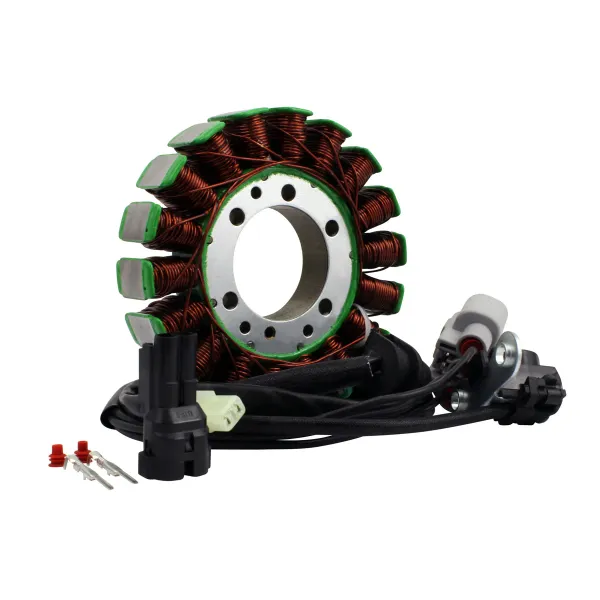

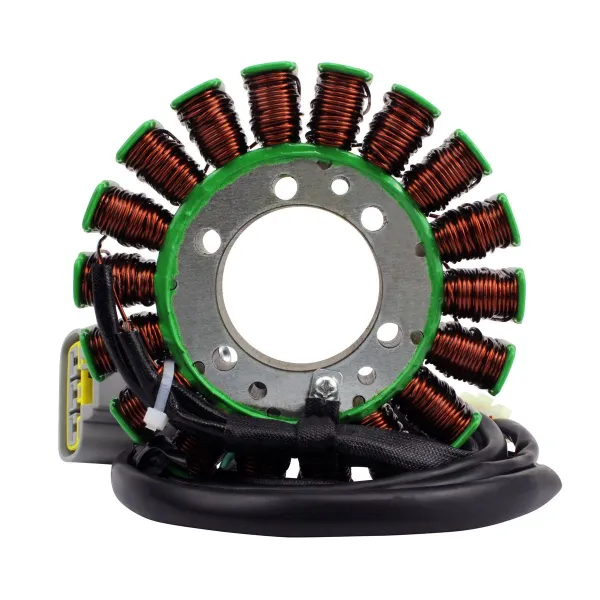

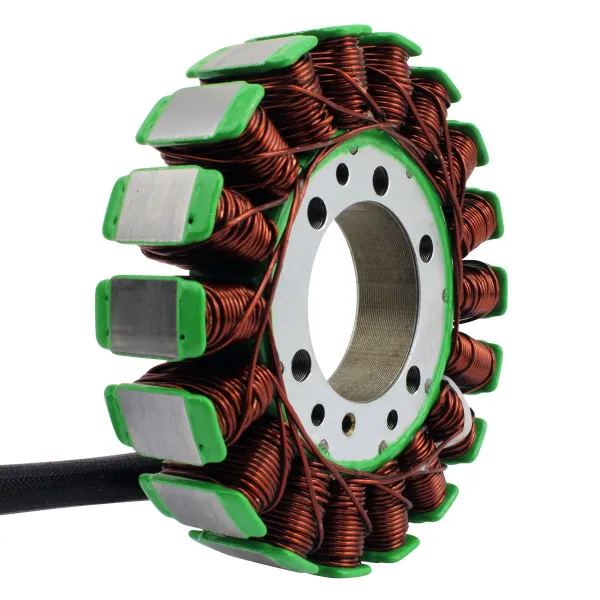

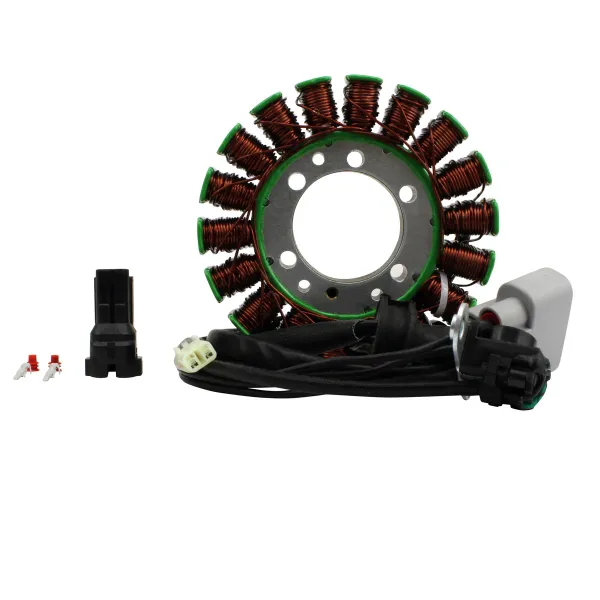

Stator Triumph Tiger 800 Tiger 800 XC XR XCA XCX XRX XRT OEM T1305965

Stator

Resistant to 200 degrees Celsius

2020 Triumph Tiger 800 XR

2020 Triumph Tiger 800 XCX

2020 Triumph Tiger 800 XCA

2020 Triumph Tiger 800 XRX

2020 Triumph Tiger 800 XRT

2019 Triumph Tiger 800 XR

2019 Triumph Tiger 800 XCX

2019 Triumph Tiger 800 XCA

2019 Triumph Tiger 800 XRX

2019 Triumph Tiger 800 XRT

2018 Triumph Tiger 800 XR

2018 Triumph Tiger 800 XCX

2018 Triumph Tiger 800 XCA

2018 Triumph Tiger 800 XRX

2018 Triumph Tiger 800 XRT

2017 Triumph Tiger 800

2017 Triumph Tiger 800 XC

2017 Triumph Tiger 800 XR

2017 Triumph Tiger 800 XCX

2017 Triumph Tiger 800 XRX

2017 Triumph Tiger 800 XRT

2016 Triumph Tiger 800

2016 Triumph Tiger 800 XC

2016 Triumph Tiger 800 XR

2016 Triumph Tiger 800 XCX

2016 Triumph Tiger 800 XRX

2016 Triumph Tiger 800 XRT

2015 Triumph Tiger 800

2015 Triumph Tiger 800 XC

2015 Triumph Tiger 800 XR

2015 Triumph Tiger 800 XCX

2015 Triumph Tiger 800 XRX

2015 Triumph Tiger 800 XRT

2014 Triumph Tiger 800

2014 Triumph Tiger 800 XC

2014 Triumph Tiger 800 XR

2014 Triumph Tiger 800 XCX

2014 Triumph Tiger 800 XRX

2013 Triumph Tiger 800

2013 Triumph Tiger 800 XC

2013 Triumph Tiger 800 XR

2013 Triumph Tiger 800 XCX

2013 Triumph Tiger 800 XRX

2012 Triumph Tiger 800

2012 Triumph Tiger 800 XC

2012 Triumph Tiger 800 XR

2012 Triumph Tiger 800 XCX

2012 Triumph Tiger 800 XRX

2011 Triumph Tiger 800

2011 Triumph Tiger 800 XC

2011 Triumph Tiger 800 XR

2011 Triumph Tiger 800 XCX

2011 Triumph Tiger 800 XRX

2010 Triumph Tiger 800 XC

2010 Triumph Tiger 800 XR

2010 Triumph Tiger 800 XCX

2010 Triumph Tiger 800 XRX

OEM T1305965

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 17 mm

Length of wires stator to grommet: 120 mm

Length of wires grommet to plug: 730 mm and 210 mm

Length of pickup coil's wire to grommet: 300 mm

Other specifications:

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L

Pickup: Green to Black = 260 ohms +/-20%
