Home>IGNITION ATV SSV UTV>CF MOTO>Aluminum Mosfet Regulator CF Moto CFORCE 400 CFORCE 800 CFORCE 500 X8 800 OEM 0800-177000

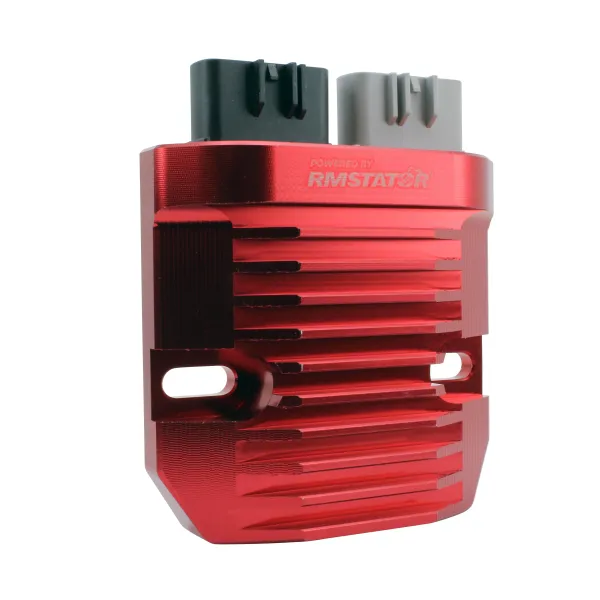

Aluminum Mosfet Regulator CF Moto CFORCE 400 CFORCE 800 CFORCE 500 X8 800 OEM 0800-177000

Aluminum Mosfet Regulator CF Moto CFORCE 400 CFORCE 800 CFORCE 500 X8 800 OEM 0800-177000

More details...

162,00 €

CARMS022-105928

Availability : 5-7 Days

3 items in stock

  • 2016 CF Moto CFORCE 400
    2016 CF Moto CFORCE 500 HO EPS
    2016 CF Moto CFORCE 800
    2016 CF Moto CFORCE 800 EPS
    2015 CF Moto CFORCE 400
    2015 CF Moto CFORCE 500 HO EPS
    2015 CF Moto CFORCE 800
    2015 CF Moto CFORCE 800 EPS
    2014 CF Moto CFORCE 500 HO EPS
    2014 CF Moto X8 800
    2014 CF Moto X8 800 EFI

    OEM 0800-177000
    • It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

      Improved heat sink and charging capabilities

      Before installing your new voltage regulator rectifier:
      Check the AC output of the stator.
      Replace any burned or corroded connectors on stator and regulator/rectifier
      Check and repair any melted wiring.
      Use hi-temp dielectric grease on all connectors.
    Dimensions:
    Width: 103 mm
    Length: 103 mm
    Height: 28 mm
    Fixation holes center to center: 80 mm
    Other specifications:
    Number of plugs: 2
    Number of pins: 5
    Number of wires: 0
    Minimum Charging Voltage: 14.5 V +- 0.5 V
    Maximum Charging Current: 50 A / 500 W
    Open Circuit Voltage: 15 V
    Operation Temperature: -20⁰ to 85⁰
    Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
