Engine Control Unit ECU CFMoto ZFORCE 800 TRAIL EX UFORCE 800 CFORCE 800 X8 OEM 0800-174000-3000

2021 CF Moto ZFORCE 800 TRAIL

2021 CF Moto ZFORCE 800 EX

2018 CF Moto UFORCE 800

2017 CF Moto CFORCE 800

2016 CF Moto CFORCE 800 X8

2015 CF Moto CFORCE 800 X8

2014 CF Moto CFORCE 800 X8

2013 CF Moto CFORCE 800 X8

OEM 0800-174000-3000

This is CF800 ECU (DELPHI P/N 28250531) (CF MOTO P/N 0800-174000-3000) for the 4 stroke liquid cooled CF Moto 800cc engine with speed sensor on the output shaft. Please, make sure to confirm your OEM# before purchasing this Engine Control Unit (ECU) as there are various ECUs available for different models. It will NOT replace any other part numbers despite looking similar. Please check the sticker on your original ECU.

This part IS :

X8 Code (Speed sensor on output shaft)

OEM 0800-174000-3000

This part DOES NOT replace :

X8 Code (Speed sensor on front wheel)

OEM 0800-174000

Z8 Code (Also fits U8 in Australia)

OEM 0800-174000-2000 0800-174001-2000

Dimensions:

Height: 23 mm

Length: 93 mm

Width: 103 mm

Fixation holes center to center: 90 mm

Other specifications:

Number of plugs: 2

Number of pins: 36

Please note that: The only real way to test your ECU is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the ECU.

90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

The ECU for the CF Moto 800 is the brains of the whole vehicle. In one integrated unit it accurately manages ignition spark timing and fuel injection timing based on input from multiple sensors on the vehicle. This is a direct OEM replacement for the original Delphi unit, and plugs in and mounts on the vehicle exactly the same.

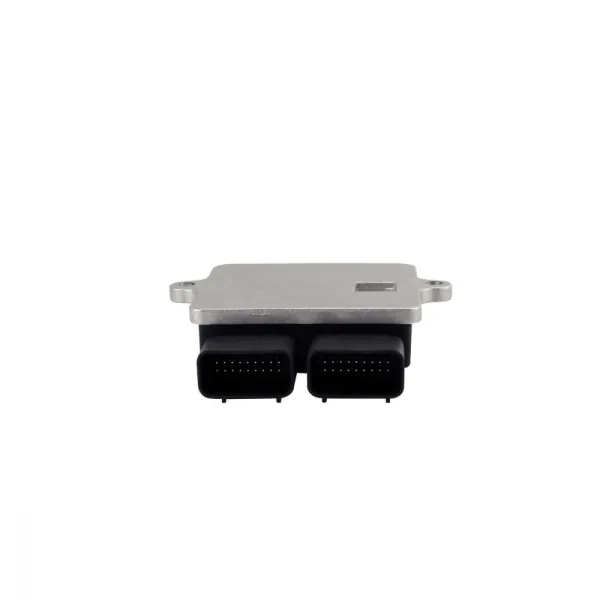

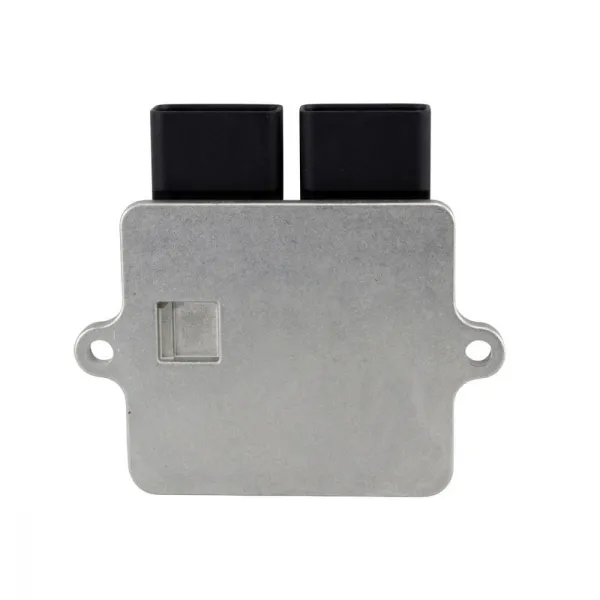

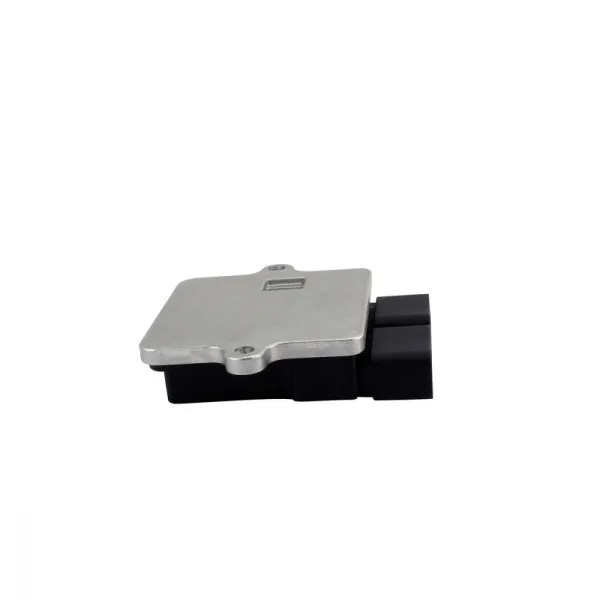

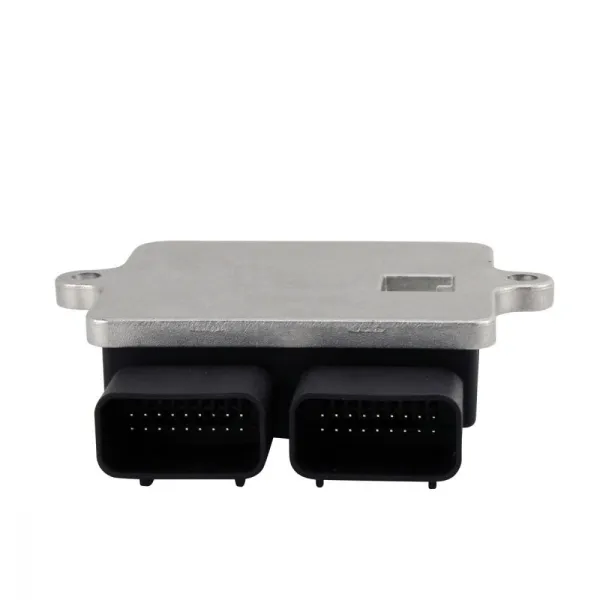

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
