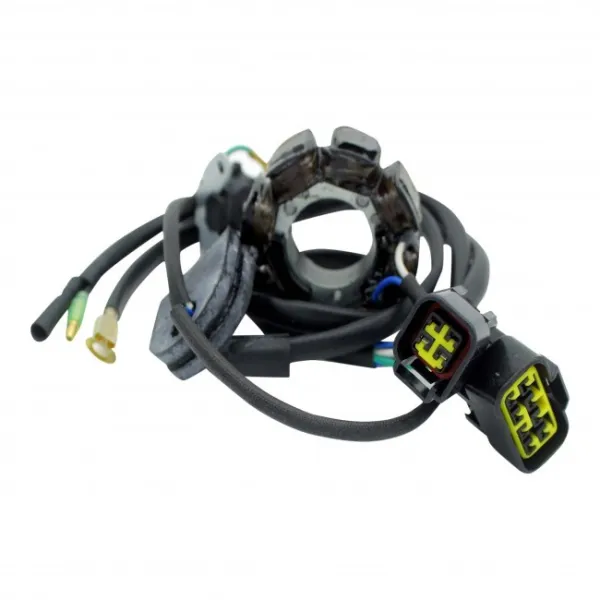

Stator Honda CR250R 1999

Stator Resistant to 200°C - Ignition Only

1999 Honda CR 250 R R

OEM 31100-KZ3-J11

Dimensions :
Interior diameter : 22mm
Exterior diameter : 87mm
Thickness : 29mm
Length of wires stator to grommet : 35mm
Length of wires grommet to plug : 540mm
Length of pickup coil's wire to grommet : 90mm

Other specifications :
Number of wires : 13
Number of plugs : 6
Number of pins : 13

Wire to wire resistance :
Pickup : Blue/Yellow to Green/White = 250ohms +/-20%
Source : Blue to White = 22ohms +/-20%
