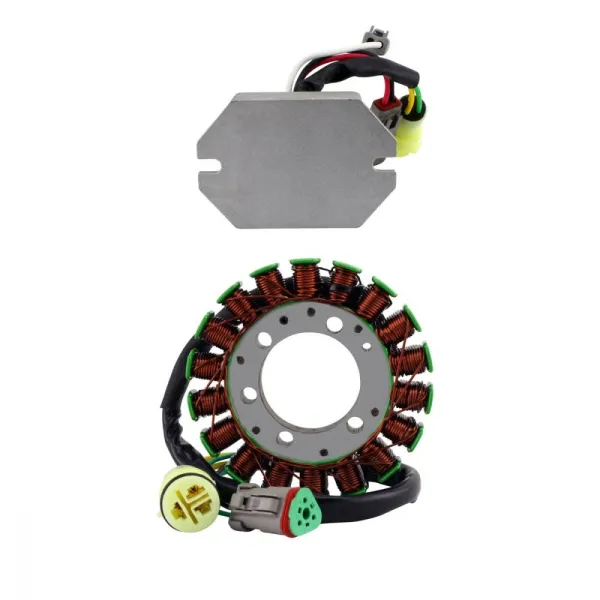

Kit Stator Regulator SkiDoo Grand Touring 600 700 800 SE Sport OEM 420888230 410922907 410920900 410922941 410923200 515175661

Stator Resistant to 200 degrees Celsius

Ski-doo
Grand Touring 600 Carb L/C
2002 Ski-doo Grand Touring 600 Carb L/C
SE
2002 Ski-doo Grand Touring 600 Carb L/C SE
Grand Touring 700 Carb L/C
SE
1997 Ski-doo Grand Touring 700 Carb L/C SE
1999 Ski-doo Grand Touring 700 Carb L/C SE
2000 Ski-doo Grand Touring 700 Carb L/C SE
2001 Ski-doo Grand Touring 700 Carb L/C SE
1999 Ski-doo Grand Touring 700 Carb L/C
2000 Ski-doo Grand Touring 700 Carb L/C
2002 Ski-doo Grand Touring 700 Carb L/C
Grand Touring 800 Carb L/C
SE
1999 Ski-doo Grand Touring 800 Carb L/C SE
2000 Ski-doo Grand Touring 800 Carb L/C SE
2001 Ski-doo Grand Touring 800 Carb L/C SE
2002 Ski-doo Grand Touring 800 Carb L/C SE
Grand Touring Sport 500 Carb L/C
2002 Ski-doo Grand Touring Sport 500 Carb L/C
Grand Touring Sport 600 Carb L/C
2002 Ski-doo Grand Touring Sport 600 Carb L/C
Grand Touring Sport 700 Carb L/C
2002 Ski-doo Grand Touring Sport 700 Carb L/C

Stator :

Dimensions :

Interior diameter: 42 mm

Exterior diameter: 103 mm

Thickness: 13 mm

Length of wires stator to plug: 425 mm

Other specifications :

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Wire to wire resistance :

Alternator: Yellow Between each Yellow = 0.5 ohms+/-20%

Alternator: Yellow to Ground = O.L. ON DISPLAY

Alternator: Green to each Yellow = 0.5 ohms+/-20%

Alternator: Black to Ground = 0.1 ohms+/-20%

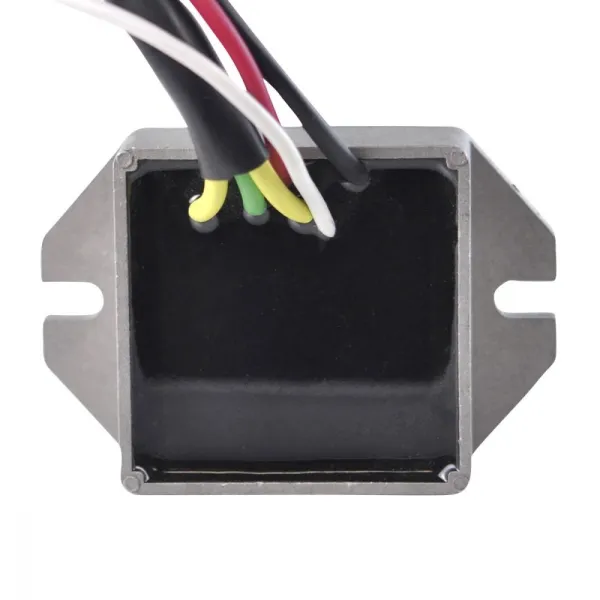

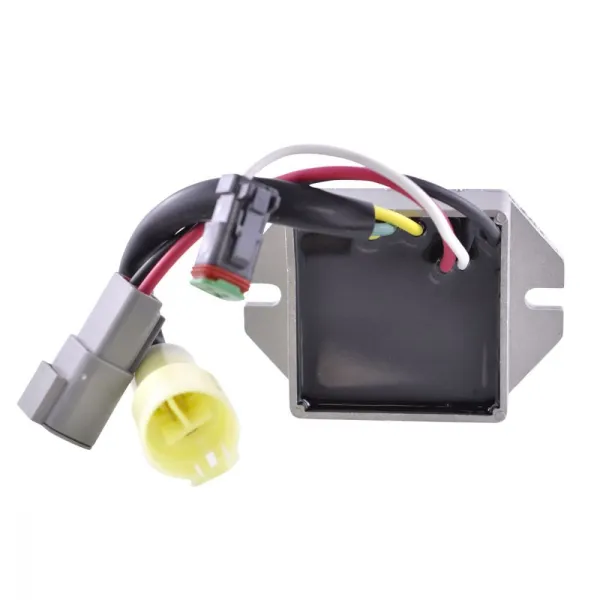

Regulator Rectifier :

Dimensions :

Width: 66 mm

Length: 66 mm

Height: 27 mm

Fixation holes center to center: 84 mm

Wires Length: 130 mm & 110 mm

Other specifications :

Number of plugs: 3

Number of pins: 6

Number of wires: 6

Minimum Charging Voltage: 14.5V +/- 0.5V

Maximum Charging Current: 50A/500W

Open Circuit Voltage: <15V

Operation Temperature: -20⁰ to 85⁰

OEM 410920900
410922907
410923200
410922941
