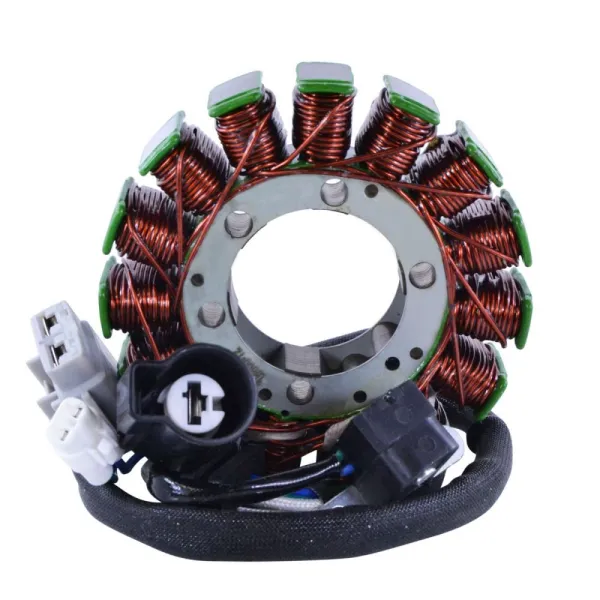

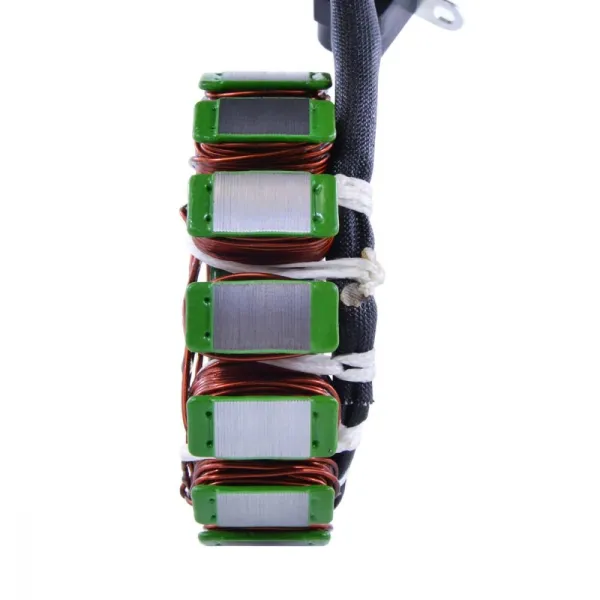

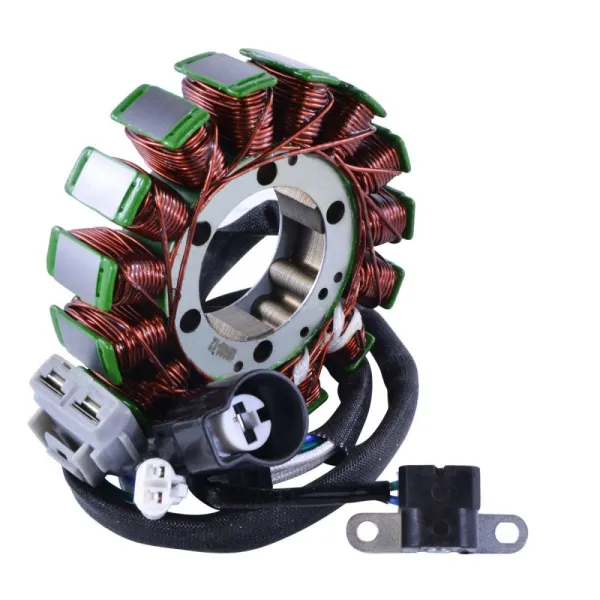

Stator Kawasaki KVF750 Brute Force KRT 750 800 OEM 21003-0166 21003-0132 21003-0134 21003-0143 21003-0108 21003-0167

2023 Kawasaki KVF 750 Brute Force EPS
2023 Kawasaki KRT 800 Teryx 4
2023 Kawasaki KRF 800 Teryx
2022 Kawasaki KVF 750 Brute Force EPS
2022 Kawasaki KRT 800 Teryx 4
2022 Kawasaki KRF 800 Teryx
2021 Kawasaki KVF 750 Brute Force i
2021 Kawasaki KVF 750 Brute Force EPS
2021 Kawasaki KVF 750 Brute Force
2021 Kawasaki KRT 800 Teryx 4
2021 Kawasaki KRF 800 Teryx
2020 Kawasaki KVF 750 Brute Force EPS
2020 Kawasaki KVF 750 Brute Force
2020 Kawasaki KRT 800 Teryx 4
2020 Kawasaki KRF 800 Teryx
2019 Kawasaki KVF 750 Brute Force i
2019 Kawasaki KVF 750 Brute Force EPS
2019 Kawasaki KRT 800 Teryx 4
2019 Kawasaki KRF 800 Teryx
2018 Kawasaki KVF 750 Brute Force i
2018 Kawasaki KVF 750 Brute Force EPS
2018 Kawasaki KRT 800 Teryx 4
2018 Kawasaki KRF 800 Teryx
2017 Kawasaki KVF 750 Brute Force i
2017 Kawasaki KVF 750 Brute Force EPS
2017 Kawasaki KRT 800 Teryx 4
2017 Kawasaki KRF 800 Teryx
2016 Kawasaki KVF 750 Brute Force i
2016 Kawasaki KVF 750 Brute Force EPS
2016 Kawasaki KRT 800 Teryx 4
2016 Kawasaki KRF 800 Teryx
2015 Kawasaki KVF 750 Brute Force i
2015 Kawasaki KVF 750 Brute Force EPS
2015 Kawasaki KRT 800 Teryx 4
2015 Kawasaki KRF 800 Teryx
2014 Kawasaki KVF 750 Brute Force i
2014 Kawasaki KVF 750 Brute Force EPS
2014 Kawasaki KRT 800 Teryx 4
2014 Kawasaki KRF 800 Teryx
2013 Kawasaki KVF 750 Brute Force i
2013 Kawasaki KVF 750 Brute Force EPS
2013 Kawasaki KRT 750 Teryx 4
2012 Kawasaki KVF 750 Brute Force i
2012 Kawasaki KVF 750 Brute Force EPS
2012 Kawasaki KRT 750 Teryx 4

OEM 21003-0166
21003-0132
21003-0134
21003-0143
21003-0108
21003-0167

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm

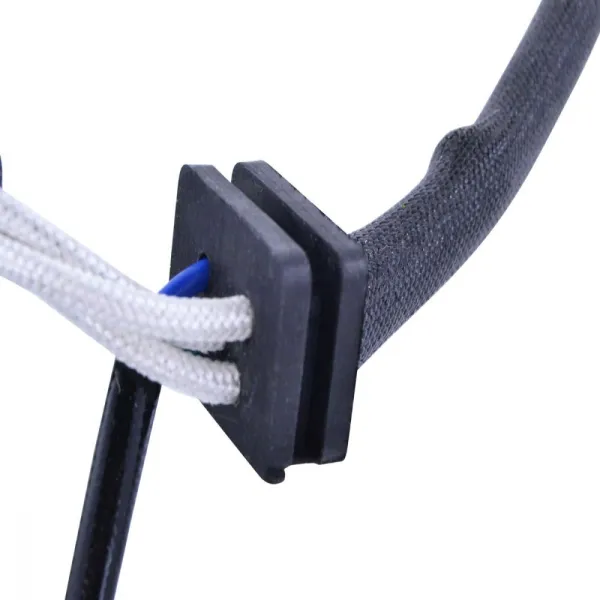

Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +-20%
Pickup : Green to Blue = 500 ohms +-20%
