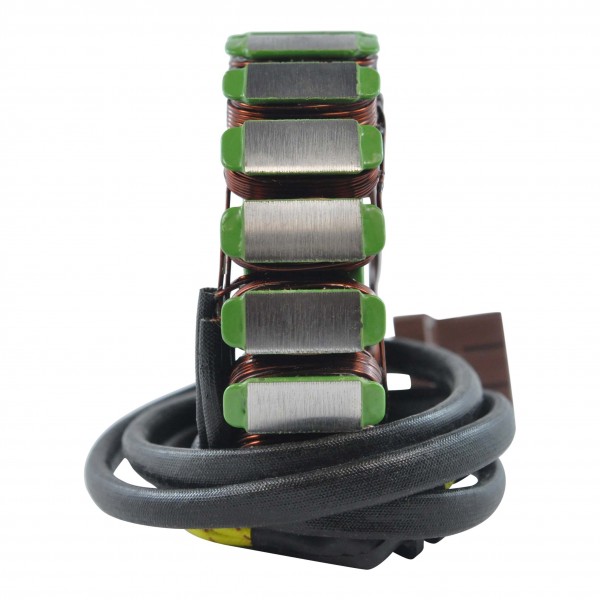

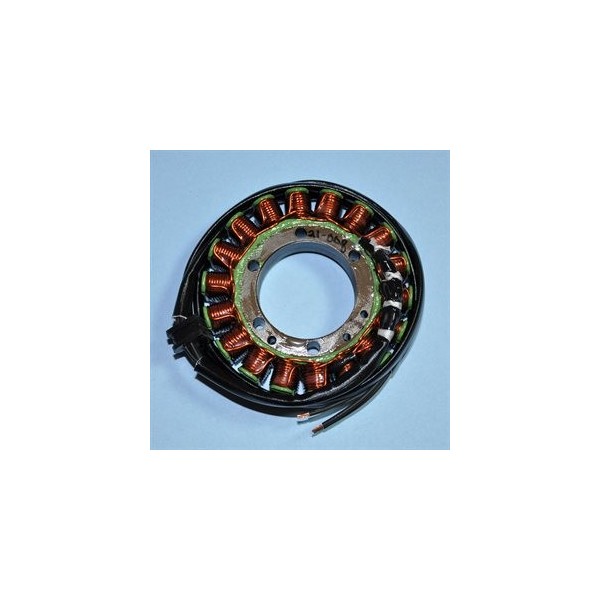

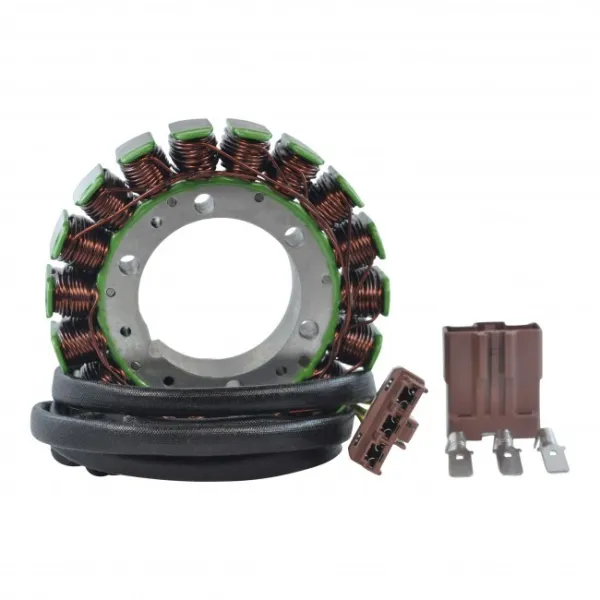

Stator Aprilia RSV1000 R 2004-2008

Stator

Aprilia RSV1000 R 2004-2008

OEM
AP0685330

Resistant to 200 degrees Celsius.

Dimensions :
Interior diameter : 55mm
Exterior diameter : 115mm
Thickness : 24mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 950mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
