€513.60 Tax included

Revolt Voltage Regulator Stator BMW S1000R S1000RR OEM 12317718420 12317718422 12318523367

Reference
CARMS020-108004
5-7 Days (2 Items)

2017 BMW S 1000 RR
2017 BMW S 1000 R
2016 BMW S 1000 RR
2016 BMW S 1000 R
2015 BMW S 1000 RR
2015 BMW S 1000 R
2014 BMW S 1000 RR
2014 BMW S 1000 R
2013 BMW S 1000 RR
2013 BMW S 1000 R
2012 BMW S 1000 RR
2011 BMW S 1000 RR
2010 BMW S 1000 RR
2009 BMW S 1000 RR

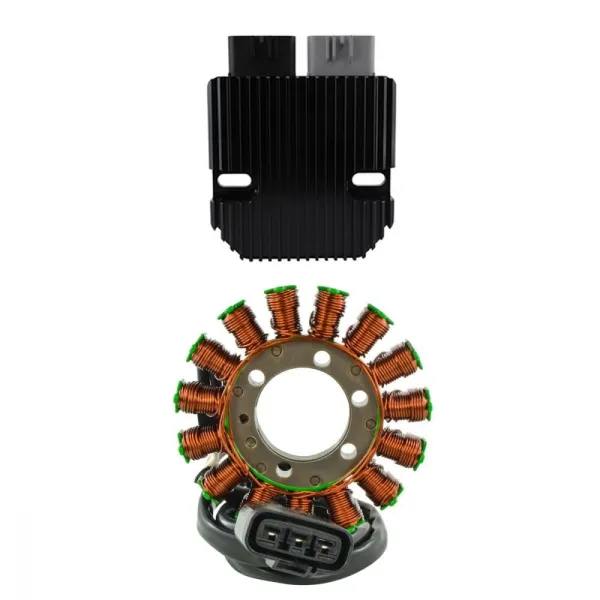

REVOLT Voltage Regulator Rectifier :
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.

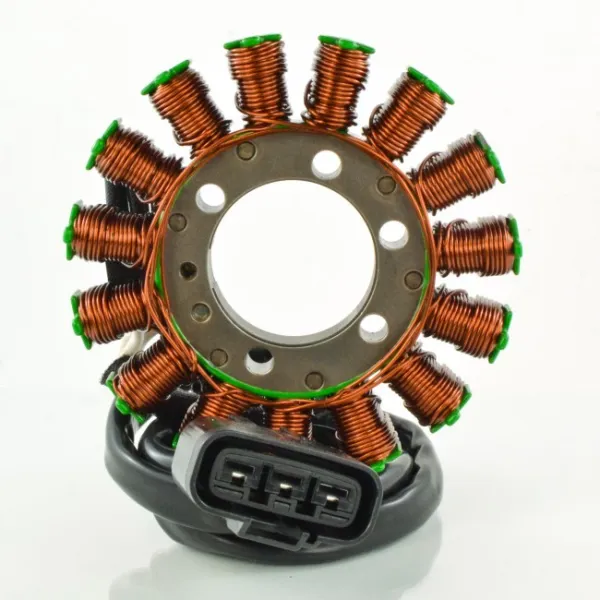

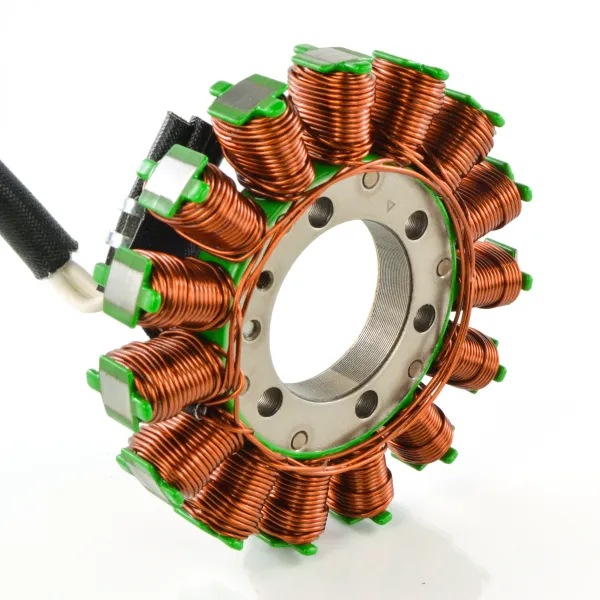

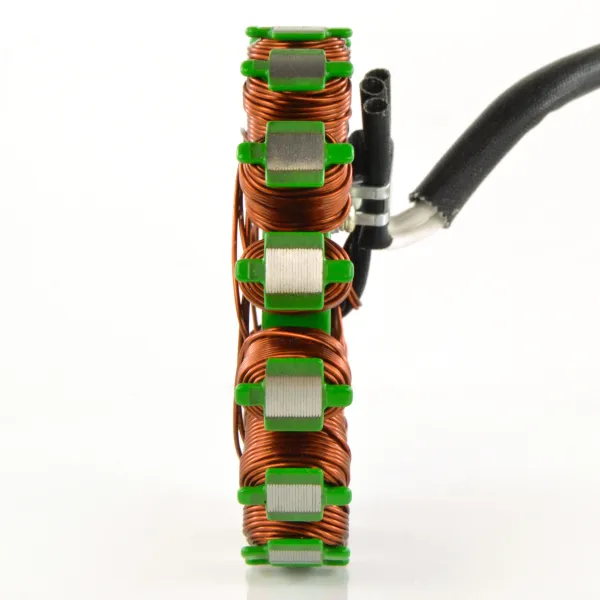

Stator :
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 13 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 670 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each Grey = 0.4 ohms +-20%
Stator OEM 12317718420
Regulator OEM 12317718422 12318523367

Check dimensions: Several stator models

Stator Resistant to 200 degrees Celsius

Resistant to 200 degrees Celsius
