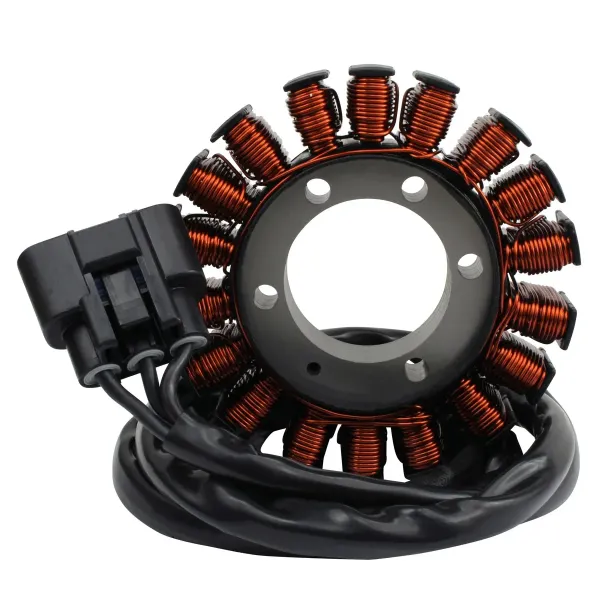

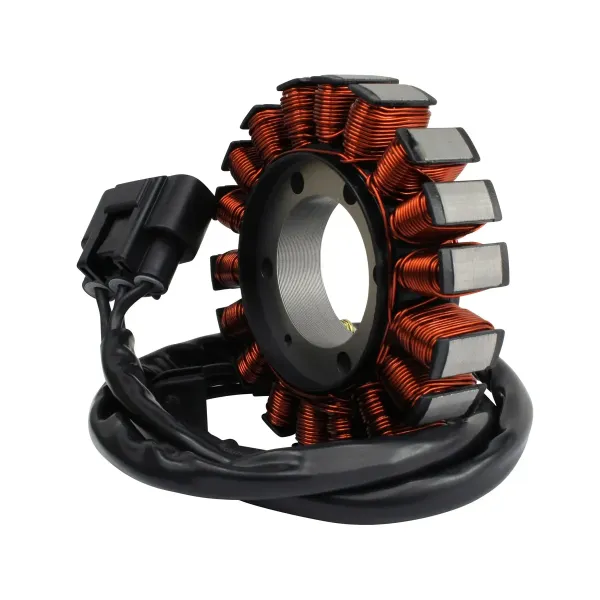

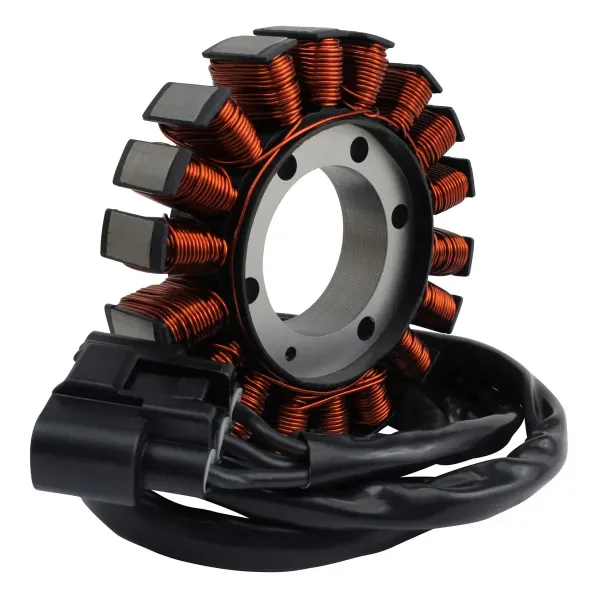

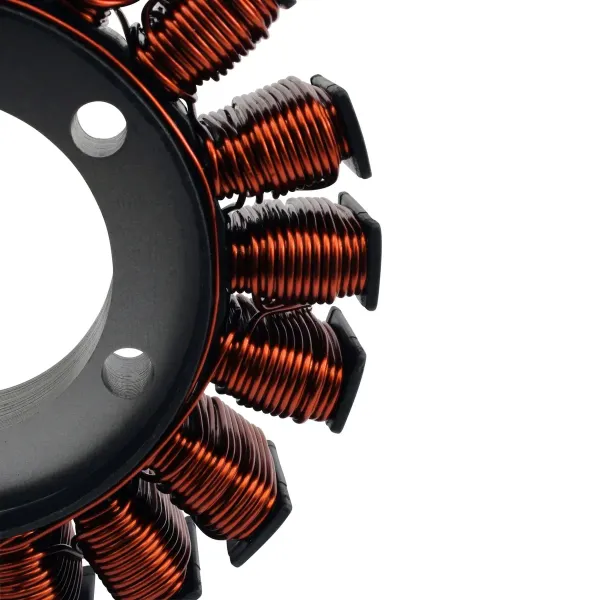

Stator BMW S1000XR OEM 12318404476 12315B35B36

2026 BMW S 1000 XR

2025 BMW S 1000 XR

2024 BMW S 1000 XR

2023 BMW S 1000 XR

2022 BMW S 1000 XR

2021 BMW S 1000 XR

2020 BMW S 1000 XR

2019 BMW S 1000 XR

2018 BMW S 1000 XR

OEM 12318404476 12315B35B36

Dimensions:

Inner diameter: 42 mm

Outer diameter: 107 mm

Thickness: 17 mm

Wire length between stator and grommet: 80 mm

Wire length between grommet and connector: 1020 mm

Other specifications:

Number of wires: 3

Number of connectors: 1

Number of terminals: 3

Number of poles: 18

Resistance between wires:

Alternator: Black to black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L

A direct replacement for your original unit

Plug-and-play, direct fit, easy installation

Highest grade lamination materials

Highest grade copper wire, heat-resistant up to 200°C

Connectors included

Grommet included

All shipped products are inspected

We have included the mating connector (main wiring harness side), as we know this connector is often melted, corroded, or defective and is a major cause of electrical issues.

If in doubt, please compare our item with your original part by referring to our photos.
