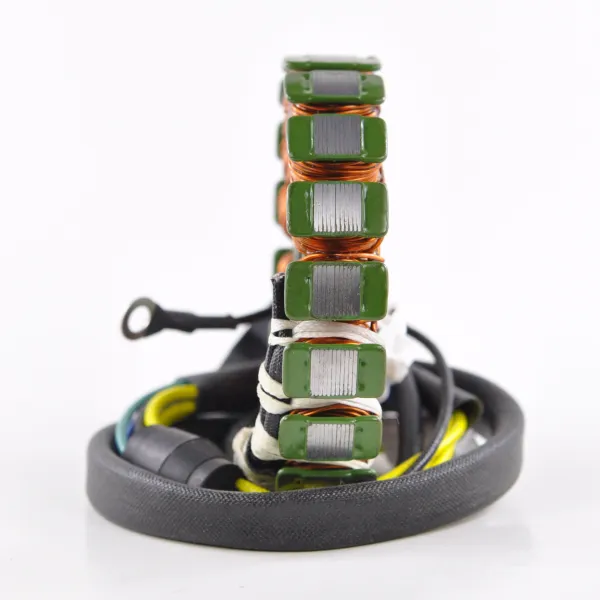

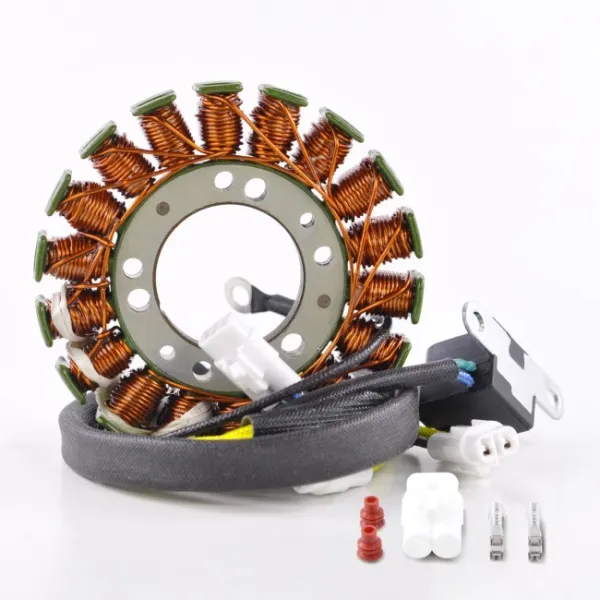

Stator Kawasaki 1200 STXR Ultra 150 OEM 21003-3739 21003-3740 21003-3746

Stator Kawasaki 1200 STXR Ultra 150

Kawasaki 1200 STX-R 2002
Kawasaki 1200 STX-R 2003
Kawasaki 1200 STX-R 2004
Kawasaki 1200 STX-R 2005

Kawasaki Ultra 150 1999
Kawasaki Ultra 150 2000
Kawasaki Ultra 150 2001
Kawasaki Ultra 150 2002
Kawasaki Ultra 150 2003
Kawasaki Ultra 150 2004
Kawasaki Ultra 150 2005

OEM 21003-3739 21003-3740 21003-3746

Pick up pulsar coil included

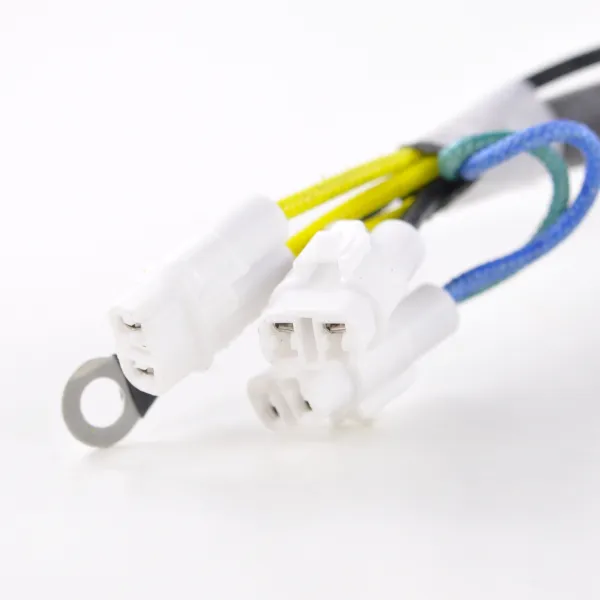

Connector included

Highest grade copper windings, resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 11 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 375 mm
Length of pickup coil's wire to grommet : 105 mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 1.1 ohms +-20%
Pickup : Green to Blue = 515 ohms +-20%
